Winches
9.0RC WINCH – 71550
Product Detail

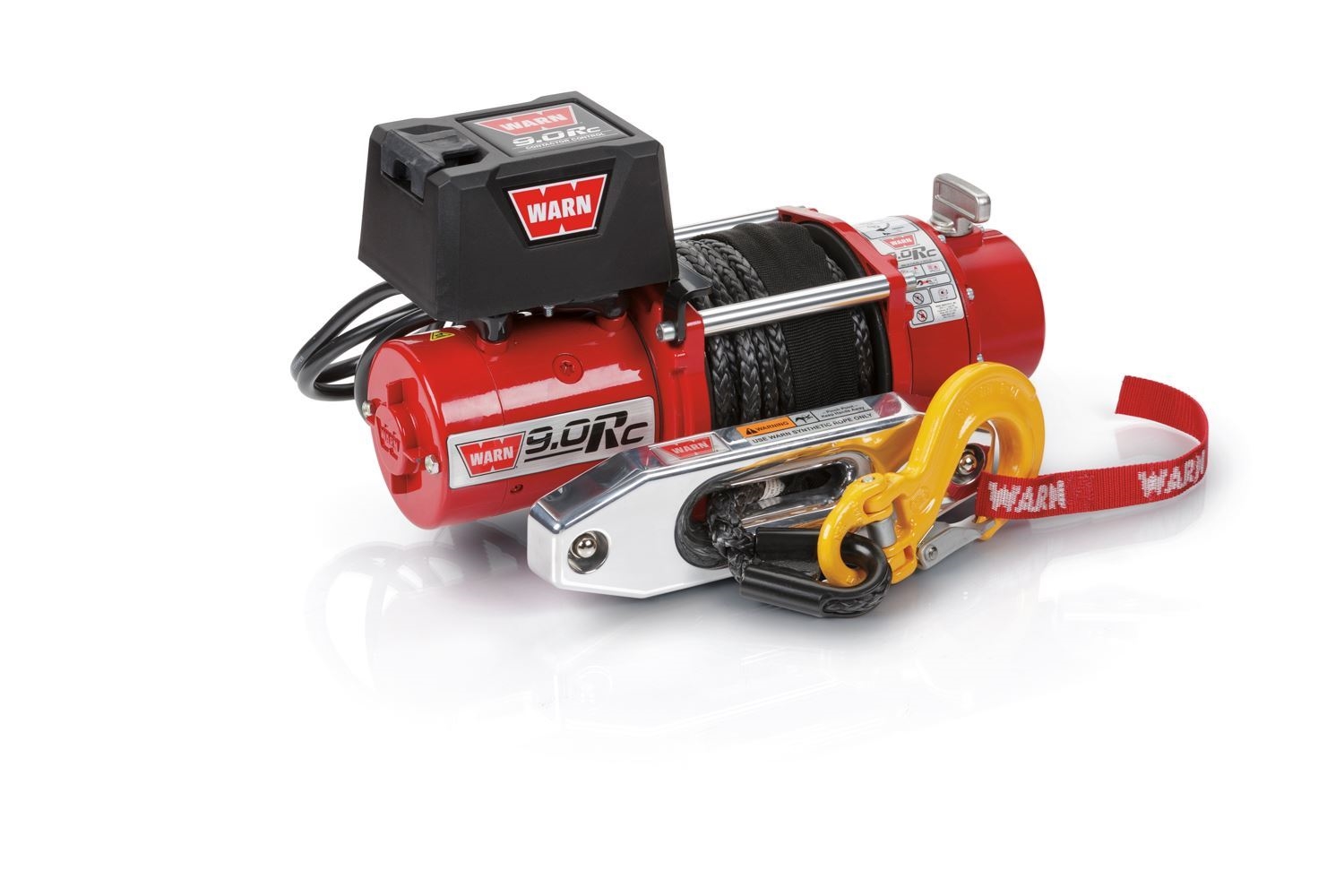

This Warn Industries 9.0Rc Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,000 pound. It has a 50 feet synthetic rope.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.
get a quoteProduct Details
Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That’s why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
- 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
- Next-generation control pack delivers long duty cycles
- New-style remote control
- 50′ of 3/8″ (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
- Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
- Aluminum hawse fairlead
- Exclusive multi-segment cam actuated brake for positive operator control during winching
- Gloss red paint with primer undercoat gives superior corrosion resistance
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
2020-2023 Jeep Gladiator JT
2007-2018 Jeep Wrangler JK
2018-2023 Jeep Wrangler JL
| Type | Electric |
| Mount Type | Vehicle Mounted |
| Recommended Use | Vehicle Recovery |
| Voltage | 12 Volt |
| Motor Horsepower | 4.8 Horsepower |
| Electrical Control Type | Contactors |
| Motor Type | Series Wound |
| Thermal Shutoff | No |
| Drive Gear Type | Planetary |
| Gear Reduction Ratio | 216:1 |
| Free Spooling | Yes |
| Brake Type | Mechanical Cone |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 50 Feet |
| Line Material | Synthetic |
| Fairlead Type | Hawse |
| Conforms To J706 Standards | No |
| Remote Type | Handheld Remote Switch |
| Mounting Hole Quantity | 4 |
| Operation Type | Automatic |
| Mounting Pattern Length (IN) | 6 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Includes Mounting Hardware | No |
| Color | Red |
| Max Amp Draw/ Line Pull | 408 Amp Draw/ 9000 Pound |
| Max Line Pull/ Line Speed | 9000 Pound/ 5.6 Feet Per Minute |
